Carports

Carports

CPQB

300 x 500

Options

GM405Rain gutter flat roof1
2127Pole plate 12x124

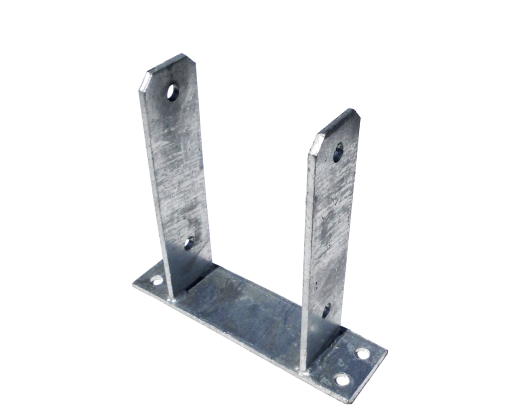

2129Pole plate U 12x12 heavy4
2131Pole anchor H 12x12 heavy4
CPP12Extra pole for CPQB(A)1

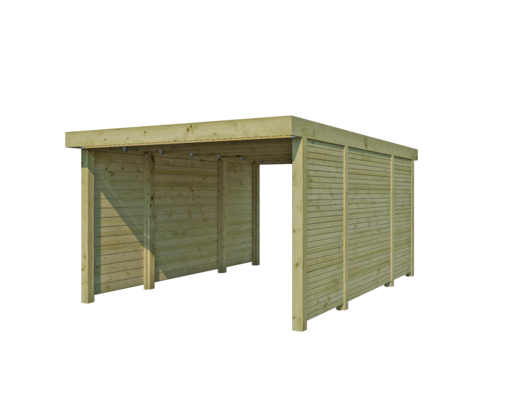

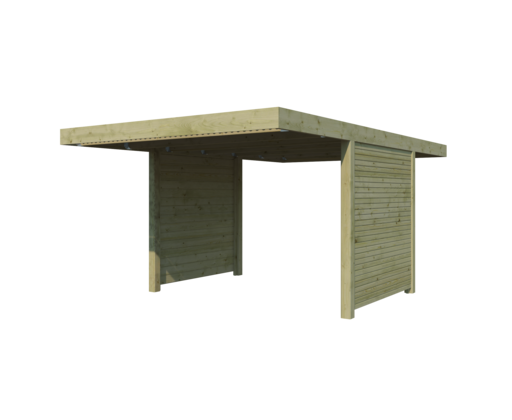

CPWQB1094Short wall for CPQB(A)1
CPWQB1860Middlewall for CPQB(A)1

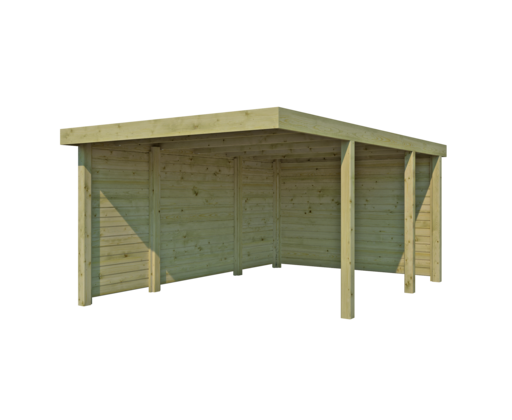

CPWQB2890Backwall for CPQB(A)1

GM405

2127

2129

2131

CPP12

CPWQB1094

CPWQB1860

CPWQB2890

Dimensions

210
313
503,8
289
14,56
503,8
313
15,77
217
198

Properties

Type of construction: solid construction built with treated wood
Roof cover: polyester corrugated sheet

Dimension on ground carport: 313 x 210 cm
Dimension inner carport: 289 x 503,8 cm
Surface inner carport: 14,56 m²
Dimension overall carport: 313 x 503,8 cm
Surface overall carport: 15,65 m²
Minimal recommended size of concrete base: 351 x 248 cm

Free Height : 198 cm
Total height: 217 cm
Weight: 158,2 kg
Packing WxDxH: 500 x 120 x 32 cm

Downloads


Mounting instructions
Mounting instructions optional walls
