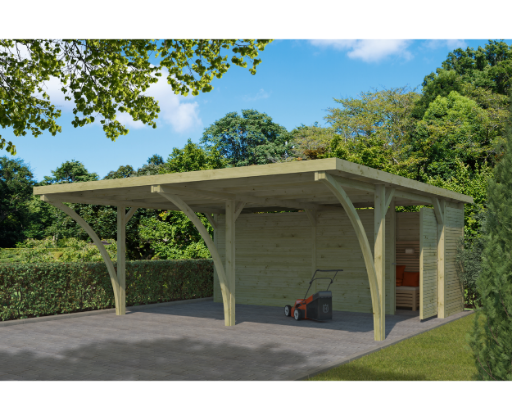

Carports

Dimensions

Properties

Type of construction: solid construction built with treated wood
Walls: shed of 26 mm thick spruce at the end of the carport
Roof cover: polyester corrugated sheet

Dimension on ground carport: 574 x 472 cm
Dimension inner carport: 550 x 501 + 550 x 128 cm
Surface inner carport: 27,56 + 7,04 m²
Dimension overall carport: 604 x 674 cm
Surface overall carport: 40,71 m²
Minimal recommended size of concrete base: 574 x 472 cm

Free Height : 230 cm
Total height: 244 cm
m² to be treated: 60 m²
Weight: 936 kg
Packing WxDxH: 350 x 120 x 65 cm

Description door 1: single door covered with boards
Lock door 1: padlock latch
Dimensions door 1 W x H: 89 x 201 cm
Section of posts: 12 x 12 cm and 9 x 9 cm, to be anchored in concrete
