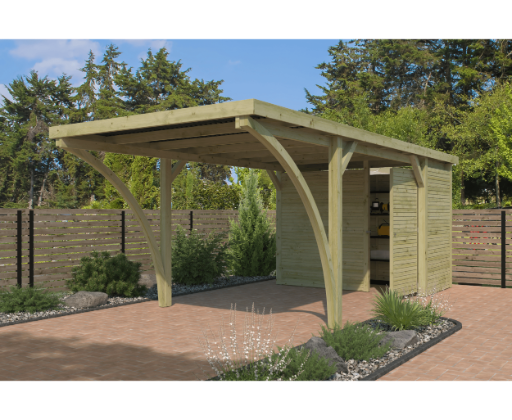

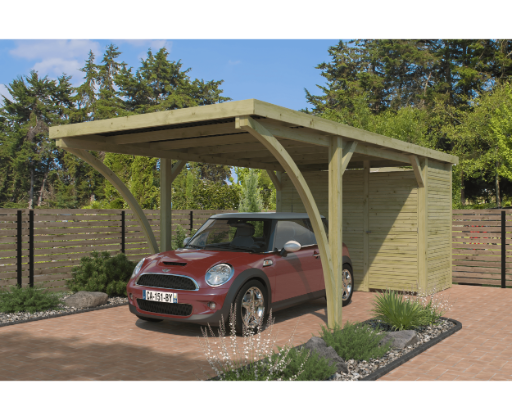

Carports

Dimensions

Properties

Type of construction: solid construction built with treated wood
Treatment of timber: class 3: against rot and insects, timber for outside use but without direct groundcontact
Walls: shed of 26 mm thick spruce in QB profile at the end of the carport
Roof cover: polyester corrugated sheet
Warranty: 5 years, see warranty conditions

Dimension on ground carport: 292 x 472 cm
Dimension inner carport: 268 x 502,3 + 268 x 127,1 cm
Surface inner carport: 16,87 m²
Dimension overall carport: 307,8 x 675,8 cm
Surface overall carport: 20,80 m²
Minimal recommended size of concrete base: 301 x 672 cm

Free Height : 230 cm
Total height: 244 cm
m² to be treated: 35 m²
Weight: 600 kg
Packing WxDxH: 350 x 120 x 60 cm

Description door 1: single door with 26mm QB boards
Lock door 1: padlock latch
Dimensions door 1 W x H: 88 x 201 cm
Section of posts: 12 x 12 cm and 9 x 9 cm, to be anchored in concrete
