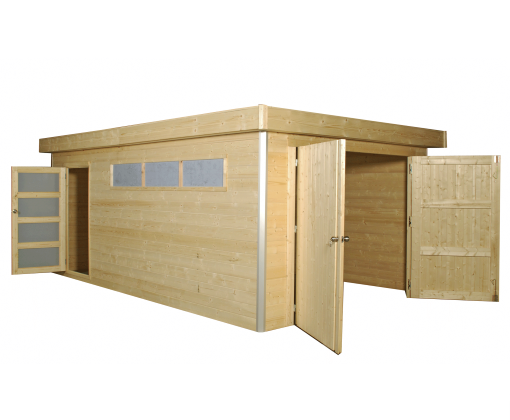

Garage

Dimensions

Properties

Type of construction: garage with windproof aluminum corner joint
Walls: construction in 28mm thick spruce from the high North
Roof cover: steel roof with anti-fog cloth

Dimension on ground baseproduct: 325 x 535 cm
Surface on ground baseproduct: 17,39 m²
Dimension inner baseproduct: 319,4 x 529,4 cm
Surface inner baseproduct: 16,91 m²
Dimension overall baseproduct: 357 x 284 cm
Surface overall baseproduct: 10,14 m²
Minimal recommended size of concrete base: 325 x 535 cm

Height of sidewall: 215 cm
Height of ridge: 235 cm
Roof slope: 1 °
m² to be treated: 75 m²
Packing WxDxH: 540 x 110 x 55 cm

Doortype 1: DDP02
Description door 1: Double gate on frame
Lock door 1: stainless steel ball latch with cylinder
Dimensions door 1 W x H: 228 x 192 cm
Daylight size door 1 W x H: 230 x 194 cm
Doortype 2: EDM03
Description door 2: single door Modern
Glazing door 2: matt plexiglass
Lock door 2: stainless steel ball latch with cylinder
Dimensions door 2 W x H: 85 x 187 cm
Daylight size door 2 W x H: 83 x 187 cm
Window type 1: A/VRM3
Description window 1: Modern window 3 parts 28mm
Glazing window 1: matt plexiglass
Daylight size window 1: 255 x 34,5 cm
