Corner Profile

Dimensions

Properties

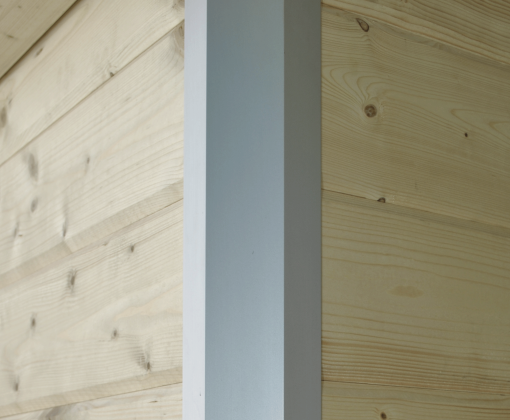

Type of construction: garden shed with windproof aluminum corner joint
Walls: construction in 28 mm thick spruce from the high North

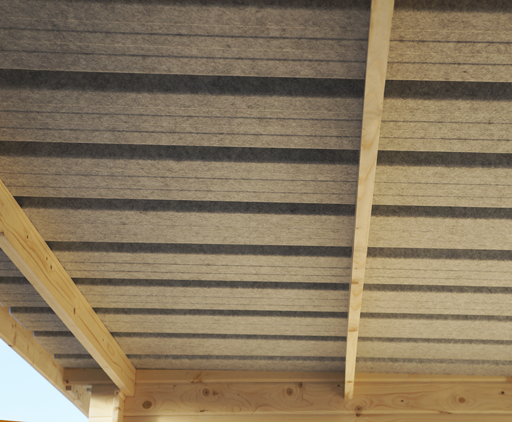

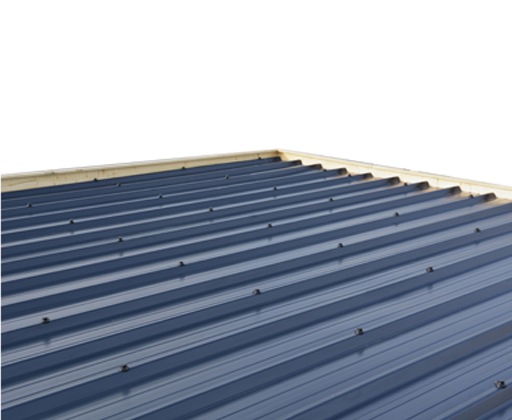

Roof cover: lacquered steel roof with anti-fog cloth

Dimension on ground baseproduct: 385 x 295 cm
Surface on ground baseproduct: 11,36 m²
Dimension on ground extension: 398,4 x 295 cm
Surface on ground extension: 11,75 m²
Dimension inner baseproduct: 379,4 x 289,4 cm
Surface inner baseproduct: 10,98 m²
Dimension inner extension: 395 x 288,2 cm
Surface inner extension: 11,38 m²
Dimension overall baseproduct: 412 x 327 cm
Surface overall baseproduct: 13,47 m²
Dimension overall extension: 400 x 327 cm
Surface overall extension: 13,08 m²
Minimal recommended size of concrete base: 785 x 295 cm

Height of sidewall: 215 cm
Height of ridge: 235 cm
Roof slope: 1 °
m² to be treated: 70 m²
Packing WxDxH: 390 x 110 x 50 + 320 x 110 x 15 cm + 300 x 30 x 40 cm

Doortype 1: DDM04M
Description door 1: double door Modern surface mounted mat
Glazing door 1: matt plexiglass

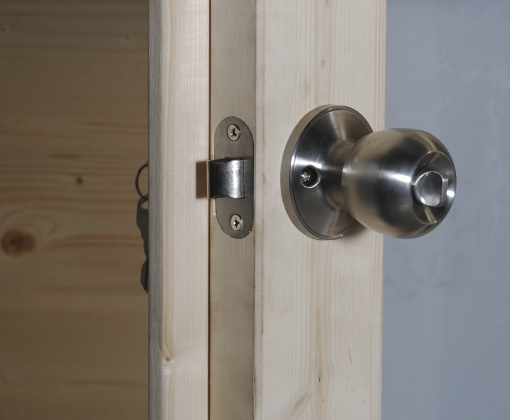

Lock door 1: stainless steel ball latch with cylinder
Dimensions door 1 W x H: 145 x 189 cm
Daylight size door 1 W x H: 143 x 188 cm

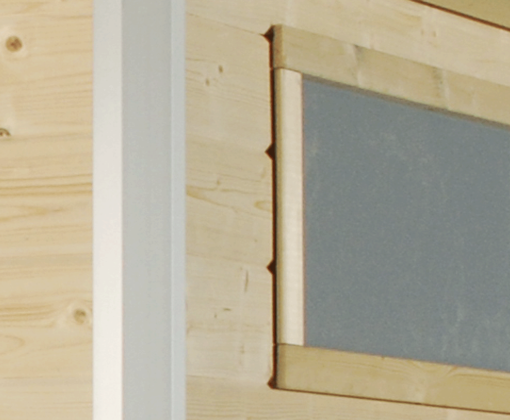

Window type 1: A/VRM1L
Description window 1: Modern window 1 part 28mm
Glazing window 1: matt plexiglass
Daylight size window 1: 830 x 34,5 cm
Window type 2: A/VRM3K
Description window 2: Modern window 3 parts 28 mm
Glazing window 2: matt plexiglass
Daylight size window 2: 228 x 34,5 cm
