Corner Profile

Aluminium Corner Profile

5011EXT400AC

785 x 385

Options

PEX5011EXT400ACCustom amount of high quality paint needed to treat exterior1
PIN5011EXT400ACCustom amount of transparent high quality paint needed to treat interior1
V5011Floor1
V5011IMGPressure treated floor1
GM805Rain gutter flat roof1
3198ACWood shed 140x170 cm1
3199ACWood shed 140x260 cm1
3197ACSide shed 150x265 cm1

PEX5011EXT400AC

PIN5011EXT400AC

V5011

V5011IMG

GM805

3198AC

3199AC

3197AC

Dimensions

385
385
14,82
379,4
379,4
14,39
412
412
16,97
385
397,8
15,32
379,4
395
14,99
412
400
16,48
235
215

Properties

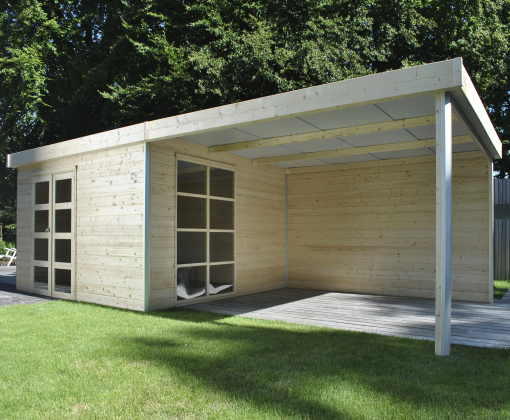

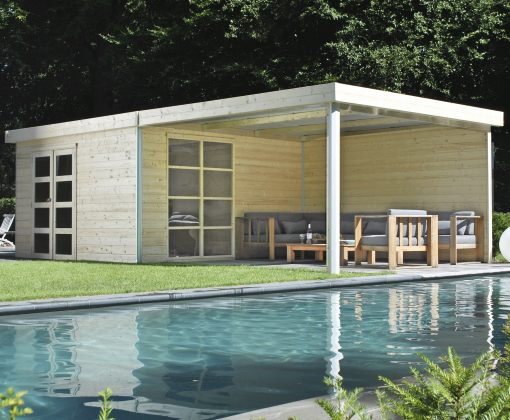

Type of construction: garden shed with windproof aluminum corner joint
Walls: construction in 28 mm thick spruce from the high North
Roof cover: steel roof with anti-fog cloth

Dimension on ground baseproduct: 385 x 385 cm
Surface on ground baseproduct: 14,82 m²
Dimension on ground extension: 397,8 x 385 cm
Surface on ground extension: 15,32 m²
Dimension inner baseproduct: 379,4 x 379,4 cm
Surface inner baseproduct: 14,39 m²
Dimension inner extension: 395 x 379,4 cm
Surface inner extension: 14,99 m²
Dimension overall baseproduct: 412 x 412 cm
Surface overall baseproduct: 16,97 m²
Dimension overall extension: 400 x 412 cm
Surface overall extension: 16,48 m²
Minimal recommended size of concrete base: 782,8 x 385 cm

Height of sidewall: 215 cm
Height of ridge: 235 cm
Roof slope: 1 °
m² to be treated: 95 m²
Packing WxDxH: 420 x 110 x 80 cm

Doortype 1: DDM04G
Description door 1: double door Modern surface mounted with real glass
Lock door 1: stainless steel ball latch with cylinder
Dimensions door 1 W x H: 145 x 189 cm
Daylight size door 1 W x H: 143 x 188 cm
Window type 1: A/VRM8G
Description window 1: Modern window 8 parts 28mm
Glazing window 1: transparent glass 4 mm
Daylight size window 1: 142 x 184 cm

Downloads


Partlist
Mounting instructions
Mounting instructions floor
Mounting instructions wood shed
Mounting instructions side shed
Mounting instructions gutter
