Logcabin

Dimensions

Properties

Type of construction: log cabin with windproof 3D connection
Ends of the boards: straigth
Walls: traditional log cabin style construction in 44 mm thick spruce from the high North
Roof cover: steel roof with anti-fog cloth

Dimension on ground baseproduct: 385 x 565 cm
Surface on ground baseproduct: 21,75 m²
Dimension inner baseproduct: 360,2 x 540,2 cm
Surface inner baseproduct: 19,46 m²
Dimension overall baseproduct: 405 x 583 cm
Surface overall baseproduct: 23,61 m²
Overhang roof front: 12 cm
Minimal recommended size of concrete base: 385 x 565 cm

Height of sidewall: 240 cm
Height of ridge: 248 cm
Roof slope: 1,2 °
m² to be treated: 105 m²
Weight: 1150 kg
Packing WxDxH: 570 x 110 x 65 cm

Doortype 1: SECP

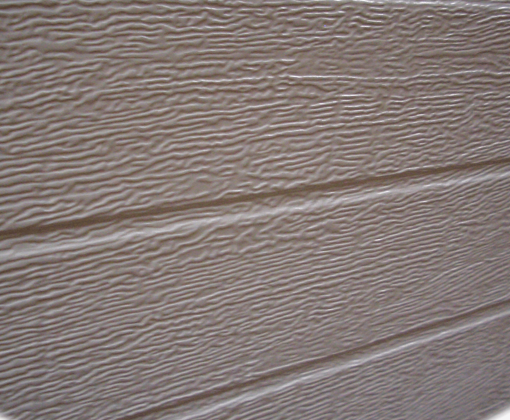

Description door 1: sectional door
Lock door 1: cylinder lock
Dimensions door 1 W x H: 245 x 200 cm
Daylight size door 1 W x H: 240 x 197 cm
Doortype 2: EDM03
Description door 2: single door Modern
Glazing door 2: matt glass 4 mm
Lock door 2: stainless steel ball latch with cylinder
Dimensions door 2 W x H: 85 x 187 cm
Daylight size door 2 W x H: 83 x 187 cm
Window type 1: X/VRM3
Description window 1: Modern window 3 parts 44mm
Glazing window 1: matt glass 4 mm
Daylight size window 1: 228 x 34,5 cm
