Logcabin

Dimensions

Properties

Type of construction: log cabin with windproof 3D connection
Ends of the boards: diamond
Walls: traditional log cabin style construction in 44 mm thick spruce from the high North

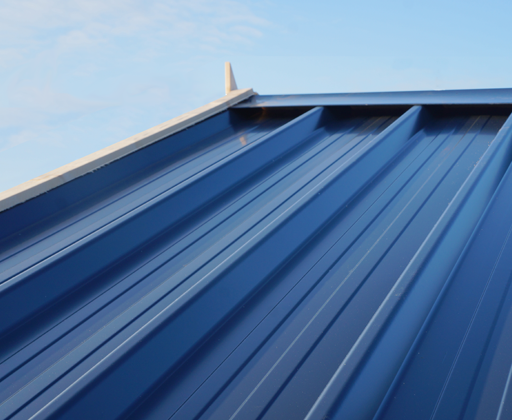

Roof: steel roof with anti-fog cloth

Dimension on ground baseproduct: 385 x 565 cm
Surface on ground baseproduct: 21,75 m²
Dimension inner baseproduct: 356,2 x 536,2 cm
Surface inner baseproduct: 19,1 m²
Dimension overall baseproduct: 405 x 601 cm
Surface overall baseproduct: 24,34 m²
Overhang roof front: 30 cm
Minimal recommended size of concrete base: 385 x 565 cm

Height of sidewall: 208 cm
Height of ridge: 255 cm
Roof slope: 18 °
m² to be treated: 85 m²
Weight: 1650 kg
Packing WxDxH: 600 x 110 x 80 cm

Doortype 1: DDP02
Description door 1: Double gate on frame
Lock door 1: stainless steel ball latch with cylinder
Dimensions door 1 W x H: 228 x 192 cm
Daylight size door 1 W x H: 230 x 194 cm
Doortype 2: EDC02
Description door 2: single wide door Classic surface mounted
Glazing door 2: transparent glass 4 mm
Lock door 2: stainless steel latch with cylinder
Dimensions door 2 W x H: 91 x 189 cm
Daylight size door 2 W x H: 89 x 188 cm
Window type 1: EOR02L
Description window 1: single opening window lying type 2
Glazing window 1: transparent glass 4 mm
Daylight size window 1: 84 x 71 cm
Window type 2: EOR02L
Description window 2: single opening window lying type 2
Glazing window 2: transparent glass 4 mm
Daylight size window 2: 84 x 71 cm
