Logcabin

Dimensions

Properties

Type of construction: log cabin with windproof 3D connection
Ends of the boards: diamond
Treatment of timber: Pressure-impregnated class 3: protection against rot, mould and insects. With additional wax additive for temporary and limited water-repellency.
Walls: traditional log cabin style construction in 28 mm thick spruce from the high North
Roof: 15 mm thick spruce from the high North
Roof cover: shingles with optional choice of colour

Dimension on ground baseproduct: 355 x 320 cm
Surface on ground baseproduct: 11,36 m²

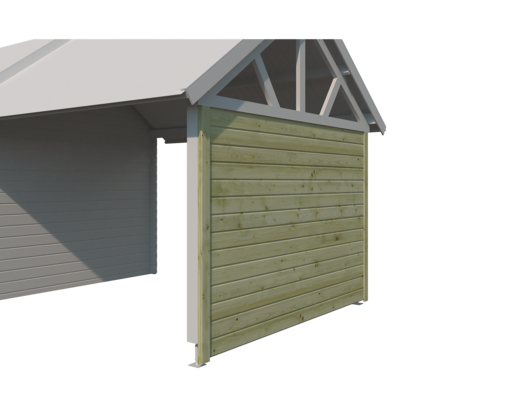

Dimension on ground extension: 357,2 x 320 cm
Surface on ground extension: 11,43 m²
Dimension inner baseproduct: 329,4 x 294,4 cm
Surface inner baseproduct: 9,7 m²
Dimension inner extension: 357,2 x 294,4 cm
Surface inner extension: 10,52 m²
Dimension overall baseproduct: 361 x 340 cm
Surface overall baseproduct: 12,27 m²
Dimension overall extension: 360 x 340 cm
Surface overall extension: 12,24 m²
Minimal recommended size of concrete base: 712,2 x 320 cm

Height of sidewall: 219/229 cm
Height of ridge: 329/341 cm
Roof slope: 36 °
m² to be treated: 125 m²
Packing WxDxH: 360 x 110 x 60 + 390 x 110 x 40 + 100 x 40 x 55 + 385 x 5 x 14 cm

Doortype 1: DDC01
Description door 1: double door Classic surface mounted
Glazing door 1: transparent glass 4 mm
Lock door 1: stainless steel latch with cylinder
Dimensions door 1 W x H: 145 x 189 cm
Daylight size door 1 W x H: 143 x 188 cm
Window type 1: EOR01L
Description window 1: single opening window lying type 1
Glazing window 1: transparent glass 4 mm
Daylight size window 1: 73 x 60 cm
