Logcabin

Dimensions

Properties

Type of construction: log cabin with windproof 3D connection
Ends of the boards: diamond
Treatment of timber: Pressure-impregnated class 3: protection against rot, mould and insects. With additional wax additive for temporary and limited water-repellency.
Walls: traditional log cabin style construction in 28 mm thick spruce from the high North
Roof: 15 mm thick spruce from the high North

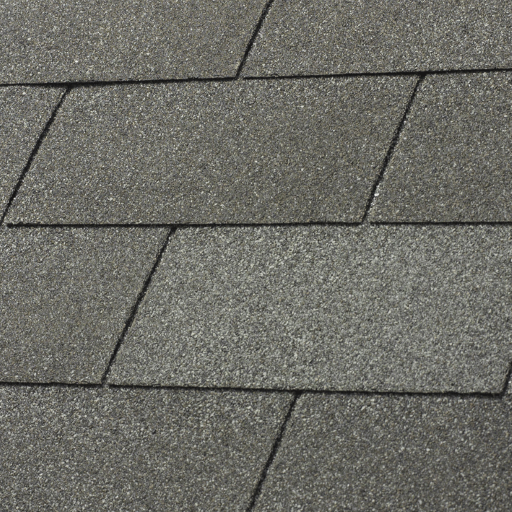

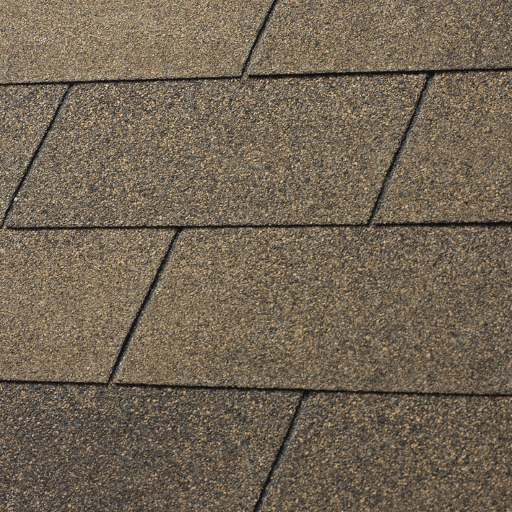

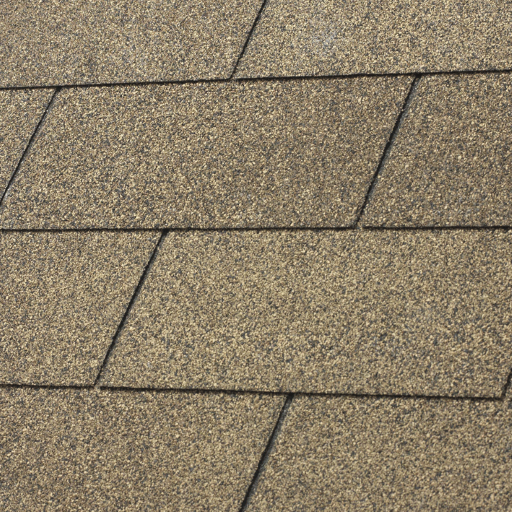

Roof cover: shingles with optional choice of colour

Dimension on ground baseproduct: 295 x 295 cm
Surface on ground baseproduct: 8,7 m²
Dimension on ground extension: 367,2 x 295 cm
Surface on ground extension: 10,83 m²
Dimension inner baseproduct: 269,4 x 269,4 cm
Surface inner baseproduct: 7,26 m²
Dimension inner extension: 367,2 x 269,4 cm
Surface inner extension: 9,89 m²
Dimension overall baseproduct: 301 x 315 cm
Surface overall baseproduct: 9,48 m²
Dimension overall extension: 370 x 315 cm
Surface overall extension: 11,66 m²
Minimal recommended size of concrete base: 662,2 x 295 cm

Height of sidewall: 216 cm
Height of ridge: 318 cm
Roof slope: 36 °
m² to be treated: 100 m²
Packing WxDxH: 300 x 110 x 60 + 390 x 110 x 40 cm + 100 x 40 x 55 cm

Doortype 1: DDC01
Description door 1: double door Classic surface mounted
Glazing door 1: transparent glass 4 mm
Lock door 1: stainless steel latch with cylinder
Dimensions door 1 W x H: 145 x 189 cm
Daylight size door 1 W x H: 143 x 188 cm
